YZF-R7 Pod Filter Airbox
Custom 3D printed pod filter airbox for the Yamaha YZF-R7, designed from full 3D scan data for precise fitment and clean integration.
Overview

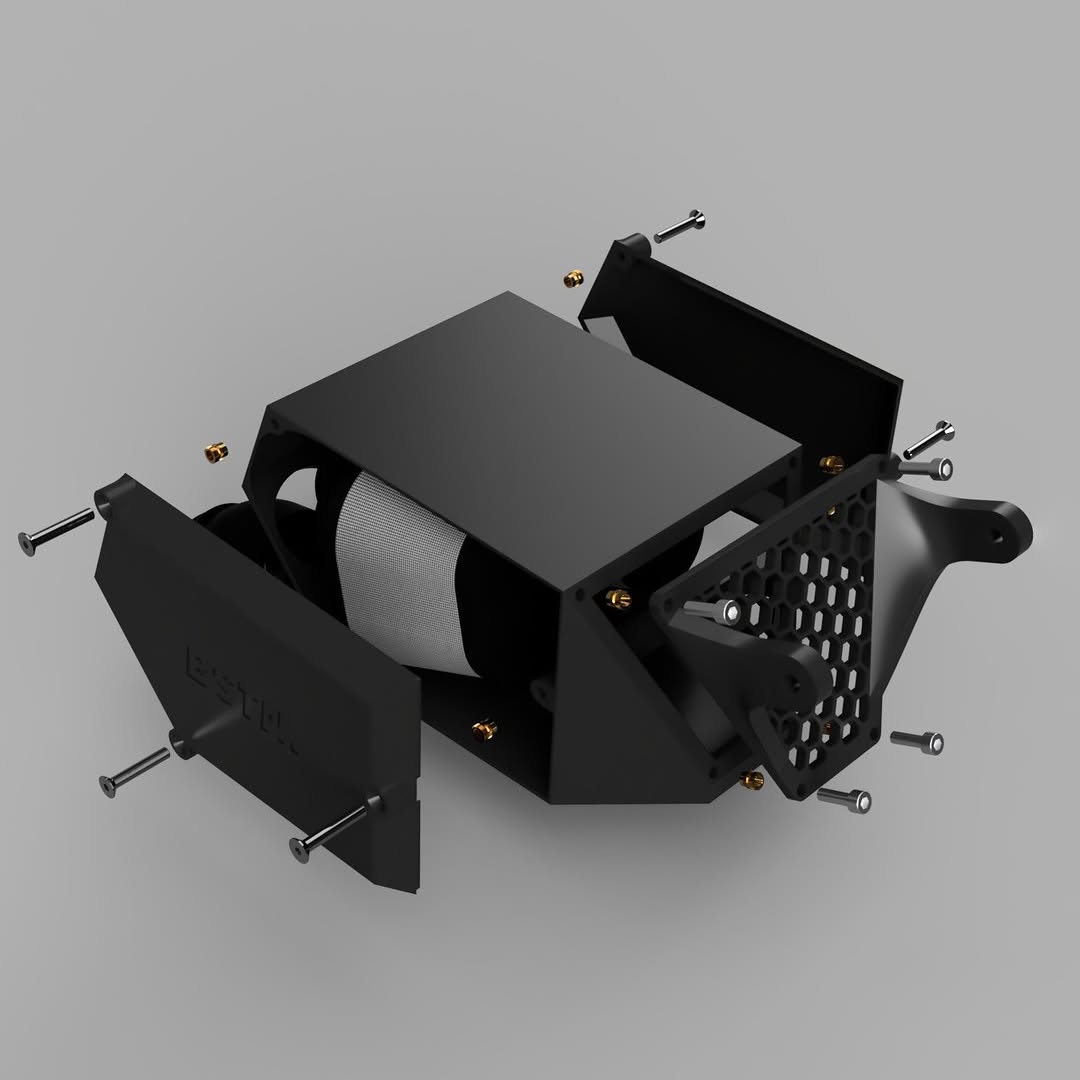

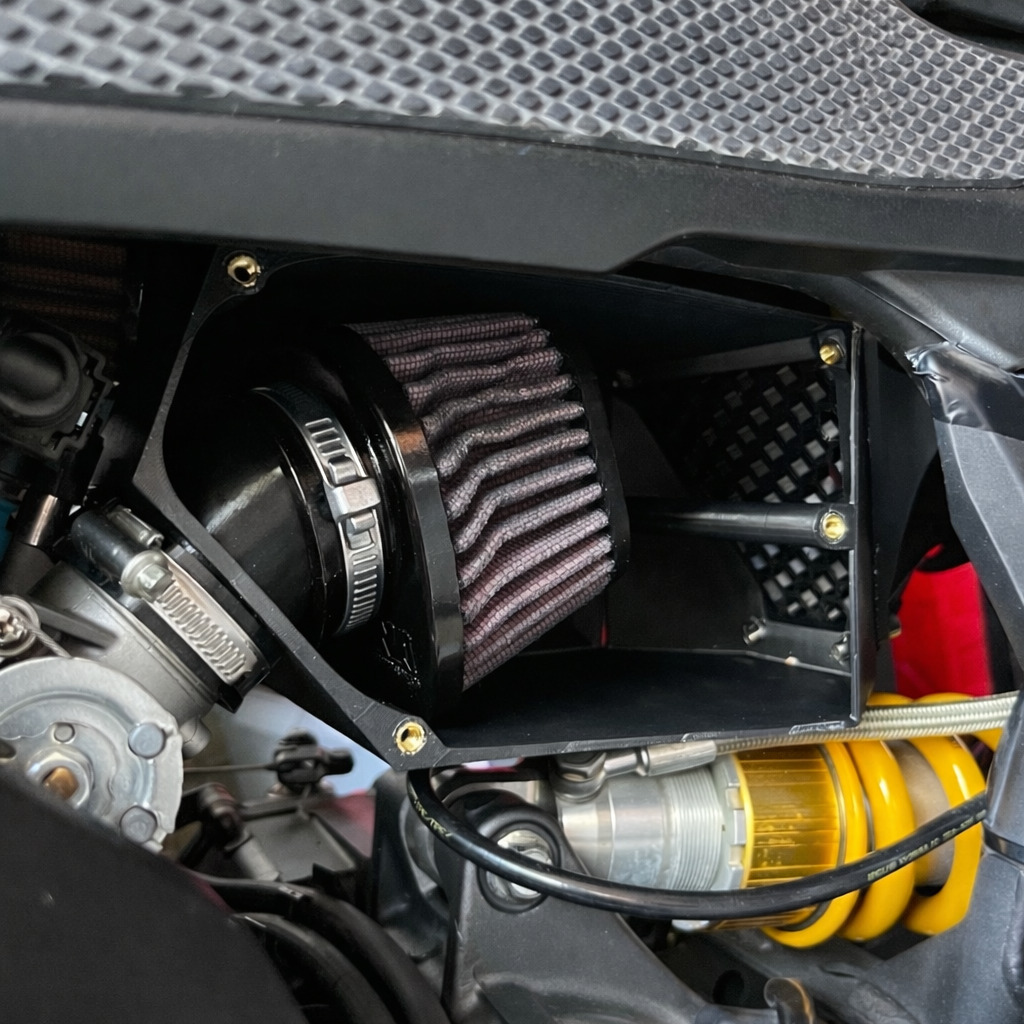

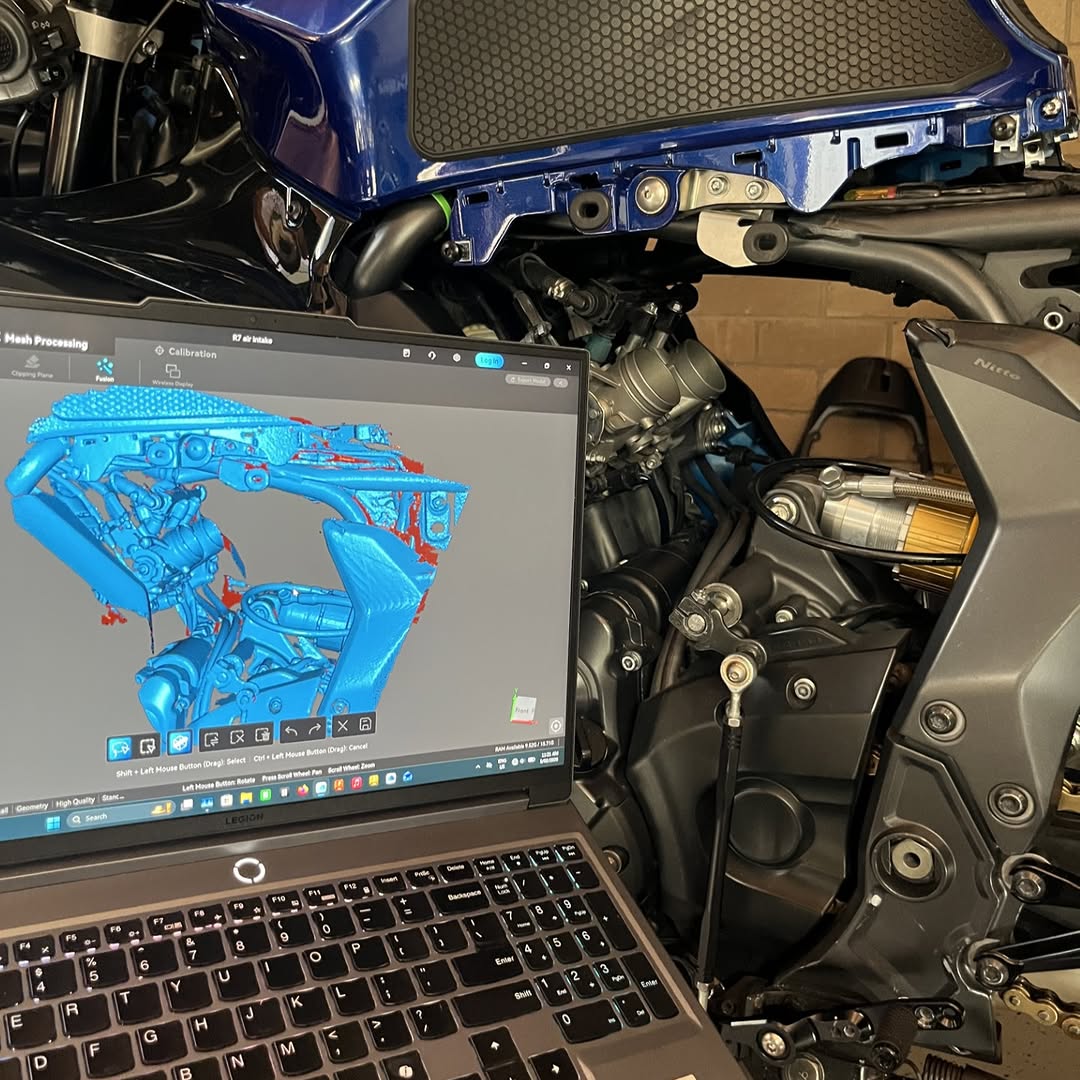

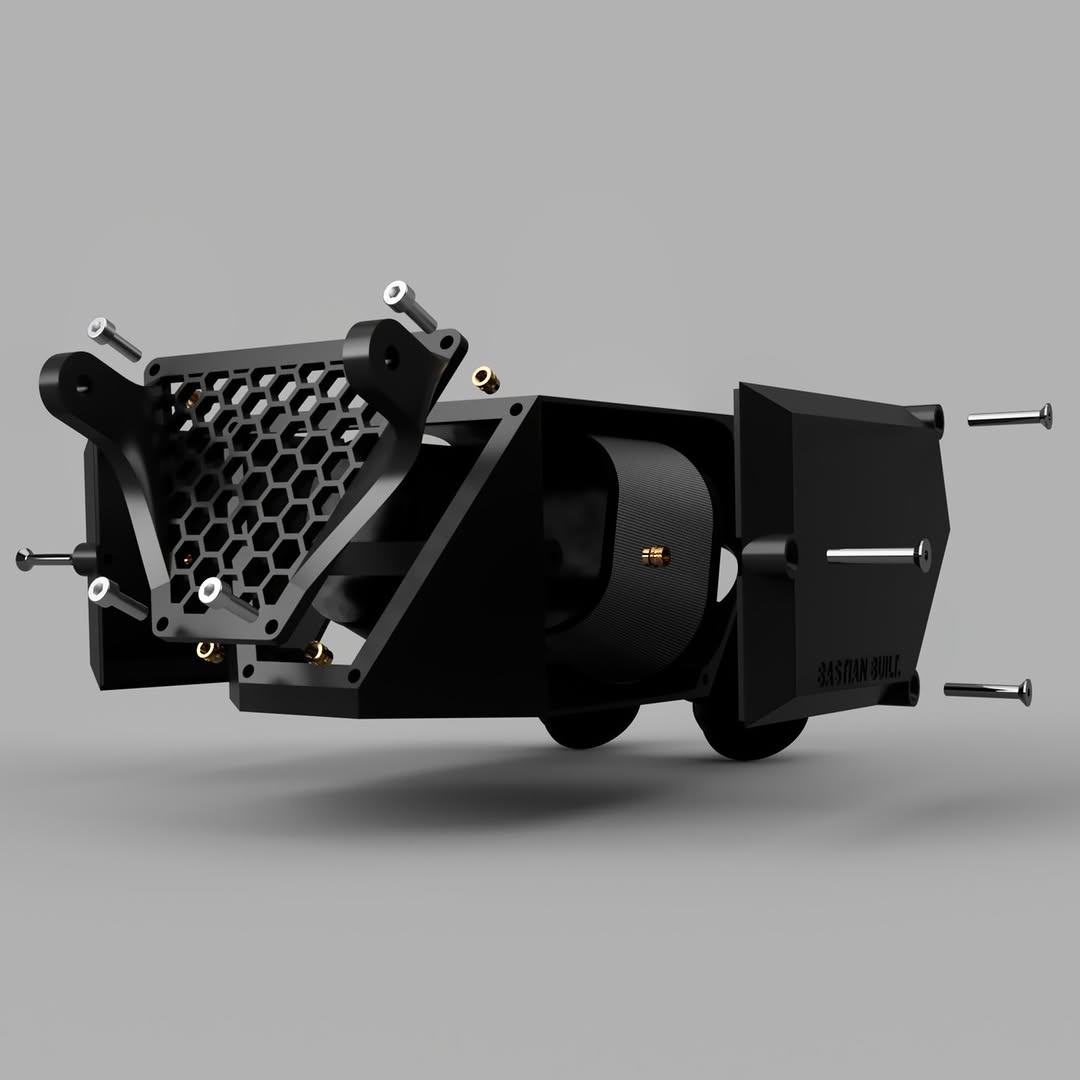

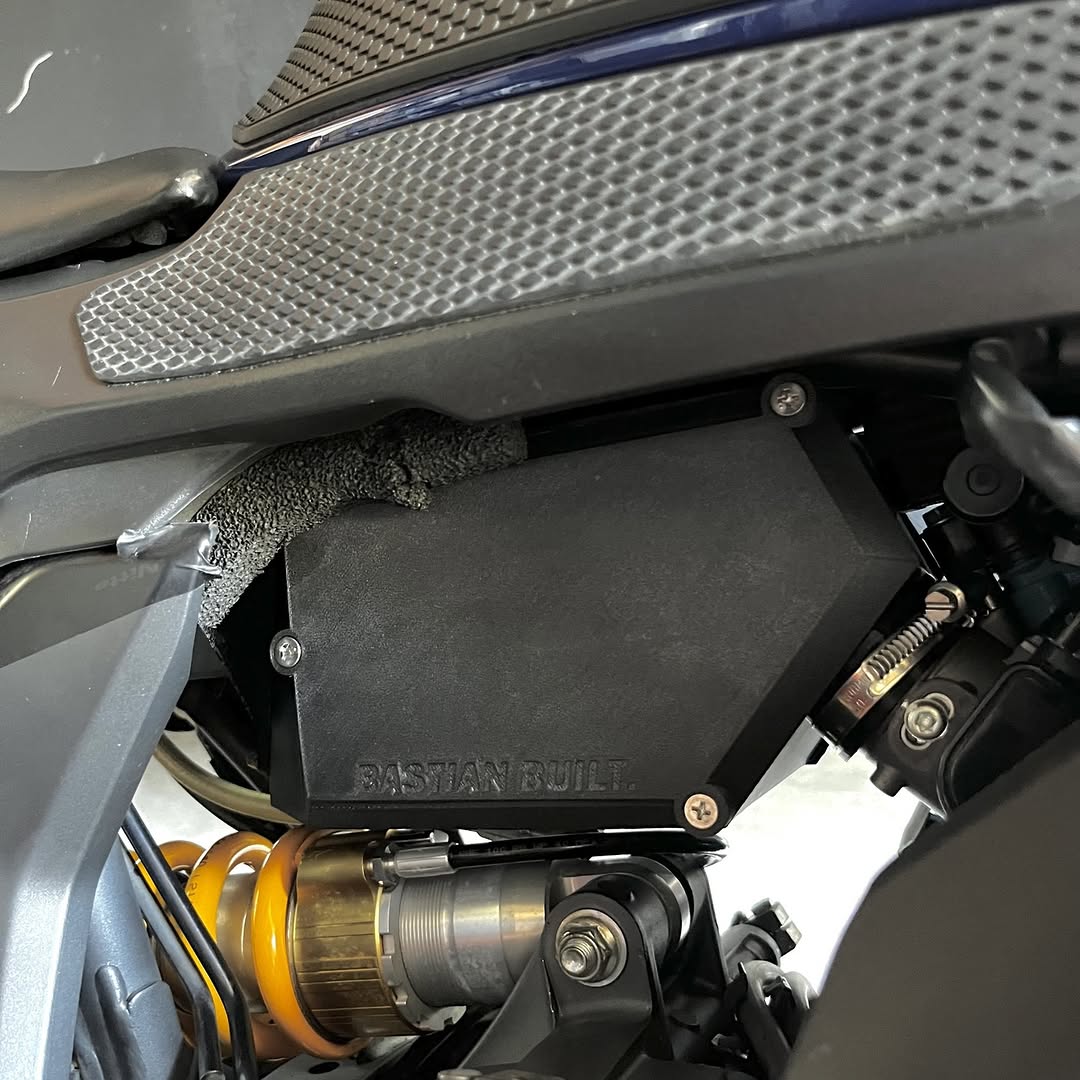

This custom YZF-R7 pod filter airbox began with a full 3D scan of the intake area to capture every mounting point, contour, and clearance. A replica model of the DNA pod filter was created to ensure perfect alignment from the outset. Designed entirely in Fusion 360 around real-world scan data, the airbox delivers precise fitment, structural integrity, and a clean OEM-plus look once installed. Printed in multiple materials to balance strength, heat resistance, and flexibility, it features brass inserts, a serviceable lid, and a hex rear vent for controlled airflow. Clean on the bike. Functional by design.
Key Features
Full 3D scan-based design for exact fitment and clearance control
Replica-modeled DNA pod filter for precision integration
Multi-material construction for strength and flexibility
Serviceable lid with brass threaded inserts
Hex-pattern rear vent for controlled airflow and visual detail
Specifications
- Material
- ASA-CF (shell), TPU (flexible joiners), Brass inserts
- Print Method
- FDM 3D Printing (Multi-material)
- Weight
- Custom application – lightweight performance-focused design
- Dimensions
- Designed specifically for Yamaha YZF-R7 intake area
- Post-Processing
- Heat-set brass inserts, assembly hardware installation, final fitment testing
Design Process
Full 3D scan of the YZF-R7 intake and surrounding frame area
Digital cleanup and preparation of scan data
Creation of a replica DNA pod filter model for accurate fit
Airbox design in Fusion 360 around real-world geometry
Multi-material print preparation and prototyping
Final printing, hardware installation, and on-bike fitment validation
