Subwoofer Box — FG Falcon Ute
Custom subwoofer enclosure designed from a full-width 3D scan of the rear cabin to fit the tight space behind the seats. Two variants were developed to suit dual 10” and dual 8” setups.
Overview
Off-the-shelf sub boxes rarely fit properly behind FG ute seats due to the tight packaging. This project used a 3D scan of the full rear cabin width to model the space accurately, then developed enclosures around volume and spacing requirements for sub performance. Two designs were created—dual 10” and dual 8”—as a practical exercise in scan-to-CAD workflow and constraint-driven packaging.
Key Features
Full-width cabin scan used to capture exact mounting volume
Purpose-built to fit behind seats where space is limited
Two enclosure variants: dual 10” and dual 8”
Designed around sub volume/spacing requirements
Scan-to-CAD workflow for complex interior geometry
Specifications
- Material
- Print Method
- Weight
- Dimensions
- Post-Processing
Design Process
3D scan rear cabin to capture complex geometry
Clean and reference scan data for packaging
Research enclosure volume and driver spacing requirements

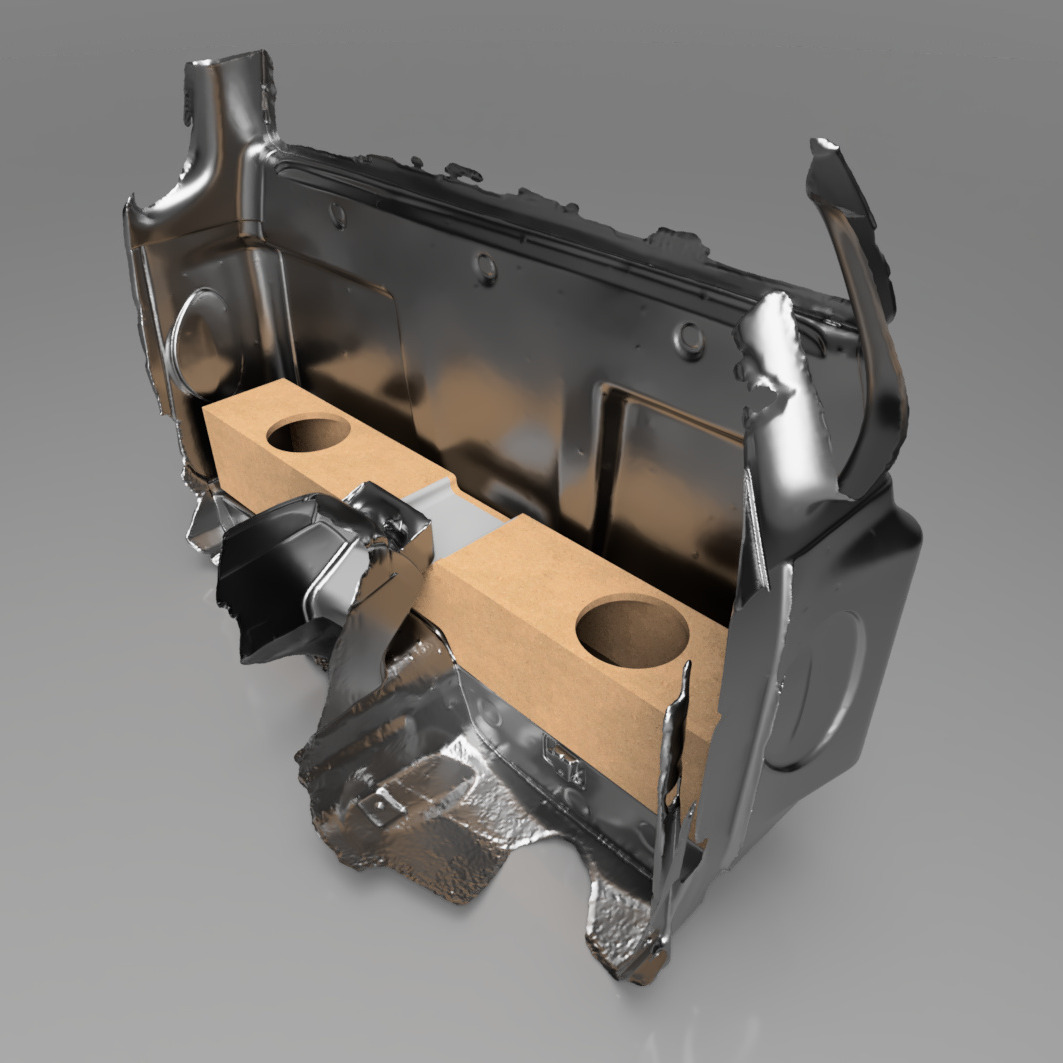

Model dual 10” enclosure concept and fit to scan
Model dual 8” enclosure concept and fit to scan
Review fitment and refine for practical installation
